SYBR UC206 Pillow block insert ball bearing spherical ball bearing
UC Series - Standard duty, setscrew locking type with wide inner ring bearing. Triple lip seals (R3 suffix) optional.
HC Series - Standard duty, eccentric locking collar type with wide inner ring bearing. Triple lip seals (R3 suffix) optional.
UCX Series - Medium duty, setscrew locking type with wide inner ring bearing.
SA..G Series - Light duty narrow inner ring bearing with a spherical OD, full cover metal slinger seals, eccentric collar locking, and re-lubrication groove with oil hole on set screw side. Available non-relubricable (remove the G suffix)
SB..G Series - Light duty narrow inner ring bearing with a spherical OD, full cover metal slinger seals, set screw locking, and re-lubrication groove with oil hole on set screw side. Available non-relubricable (remove the G suffix).
SER Series - Standard duty, setscrew locking type with cylindrical OD and wide inner ring bearing and snap ring on setscrew side.

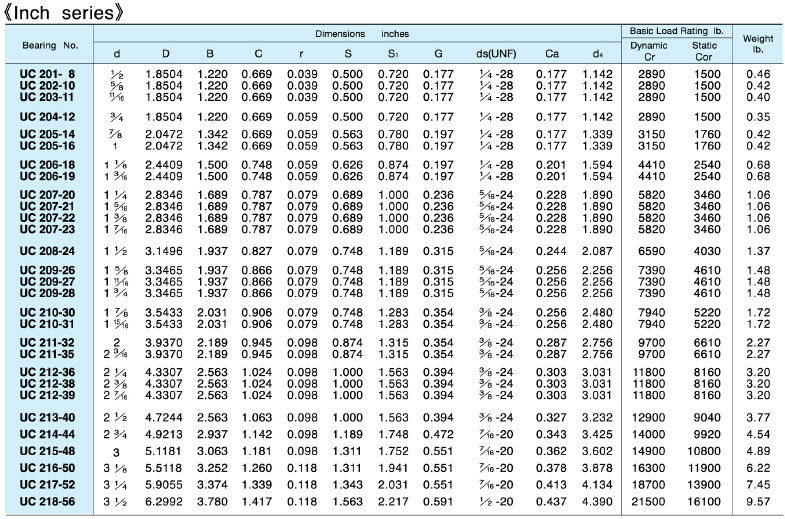

SYBR UC206 Pillow block insert ball bearing spherical ball bearing models series :
| Model | Shaft diameter d | D (inch ) | Width (inch ) | Outer ring width (inch) |
| UC201-12MM | 12 mm | 1.8504 | 1.2200 | 0.6693 |
| UC201-8 | 1/2 in | 1.8504 | 1.2200 | 0.6693 |
| UC201-8S | 1/2 in | 1.5748 | 1.0790 | 0.5512 |
| UC202-10 | 5/8 in | 1.8504 | 1.2200 | 0.6693 |
| UC202-10S | 5/8 in | 1.5748 | 1.0790 | 0.5512 |
| UC202-15MM | 15 mm | 1.8504 | 1.2200 | 0.6693 |
| UC203-11 | 11/16 in | 1.8504 | 1.2200 | 0.6693 |
| UC203-17MM | 17 mm | 1.8504 | 1.2200 | 0.6693 |
| UC204-12 | 3/4 in | 1.8504 | 1.2200 | 0.6693 |
| UC204-20MM | 20 mm | 1.8504 | 1.2200 | 0.6693 |
| UC205-14 | 7/8 in | 2.0472 | 1.3400 | 0.6693 |
| UC205-15 | 15/16 in | 2.0472 | 1.3400 | 0.6693 |
| UC205-16 | 1 in | 2.0472 | 1.3400 | 0.6693 |
| UC205-25MM | 25 mm | 2.0472 | 1.3400 | 0.6693 |
| UC206-17 | 1-1/16 in | 2.4409 | 1.5000 | 0.7480 |
| UC206-18 | 1-1/8 in | 2.4409 | 1.5000 | 0.7480 |
SYBR UC206 Pillow block insert ball bearing spherical ball bearing application :
Our packing :
Our packing :

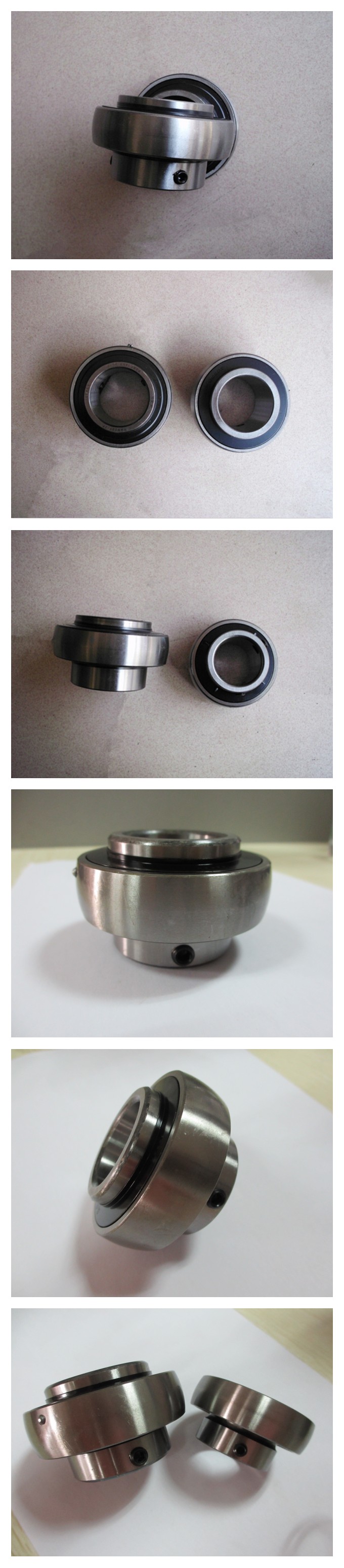

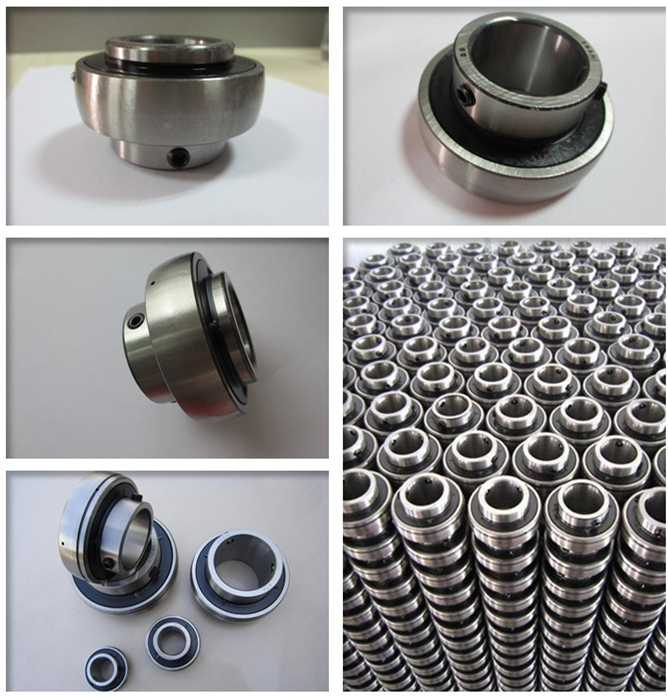

SYBR UC206 Pillow block insert ball bearing spherical ball bearing photos :
