SYBR GE35ES GE35-FO-2RS Radial spherical plain bearing

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

Details information of Radial spherical plain bearings

1) Sliding contact surfaces: Steel vs. Steel.
2) Materials: Both outer race and inner race are made of high chrome bearing steel.
3) Heat treatment: Both outer race and inner race are quenched (hardened), surface phosphorized.
4) Features of structure: With oil groove and oil holes, with an axial split in outer race.
5) Lubricant: molybdenum disulfide.
6) Properties: Good wearability, corrosion resistance, self-alignment.

Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly
sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements
between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds.

Radial spherical plain bearings Technical Parameters

Bearing	Radial spherical plain bearing
Brand Name	SYBR
Bore Size	1-100(mm)
Outside Diameter	2-150(mm)
width	1-50(mm)
Material	Ring Material Chrome Steel ,Carbon steel,Stainless steel
Clearance	C0,C2,C3,C4,C5
Vibration	Zv1,Zv2 and Zv3
Precision Rating	P0,P6,P5
Greese	As you requirement, such as SRL ,PS2, Alvania R12 and so on
Number of Row	Single Row
Guarantee	1 year
Application	Home appliances, low noise and high speed electric motors, automotivecomponents, pumps, machinery.
Certifications	ISO 9001:2008, SASO,CE
Package	Single box or according to buyers requirement .
Place of Origin	China (Mainland)
MOQ	1 PCS
Payment Term	T/T or L/C or West Union

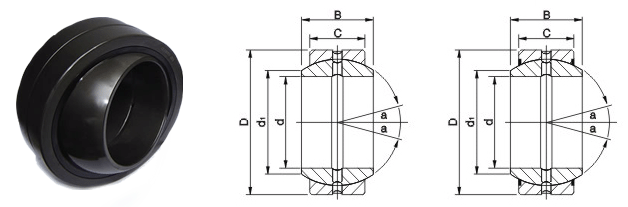

No.	Model	d	D	B	C	Dynamic (KN)	Static (KN)	Weight(kg)
1	GE15ES	15	26	12	9	16	84	0.027
2	GE17ES	17	30	14	10	21	106	0.041
3	GE20ES	20	35	16	12	30	146	0.066
4	GE25ES	25	42	20	16	48	240	0.119
5	GE30ES	30	47	22	18	62	310	0.153
6	GE35ES	35	55	25	20	79	399	0.233
7	GE40ES	40	62	28	22	99	495	0.306
8	GE45ES	45	68	32	25	127	637	0.427
9	GE50ES	50	75	35	28	156	780	0.546
10	GE60ES	60	90	44	36	245	1220	1.04
11	GE70ES	70	105	49	40	313	1560	1.55
12	GE80ES	80	120	55	45	400	2000	2.31
13	GE90ES	90	130	60	50	488	2440	2.75
14	GE100ES	100	150	70	55	607	3030	4.45
15	GE110ES	110	160	70	55	654	3270	4.82
16	GE120ES	120	180	85	70	950	4750	8.05
17	GE140ES	140	210	90	70	1070	5350	11.02
18	GE160ES	160	230	105	80	1360	6800	14.01
19	GE180ES	180	260	105	80	1530	7650	18.65
20	GE200ES	200	290	130	100	2120	10600	28.03
21	GE220ES	220	320	135	100	2320	11600	35.51
22	GE240ES	240	340	140	100	2550	12700	39.91

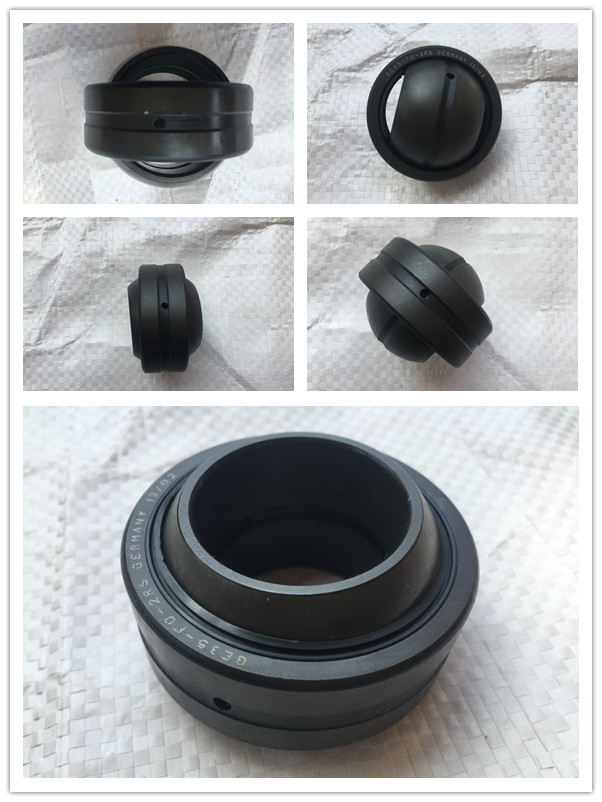

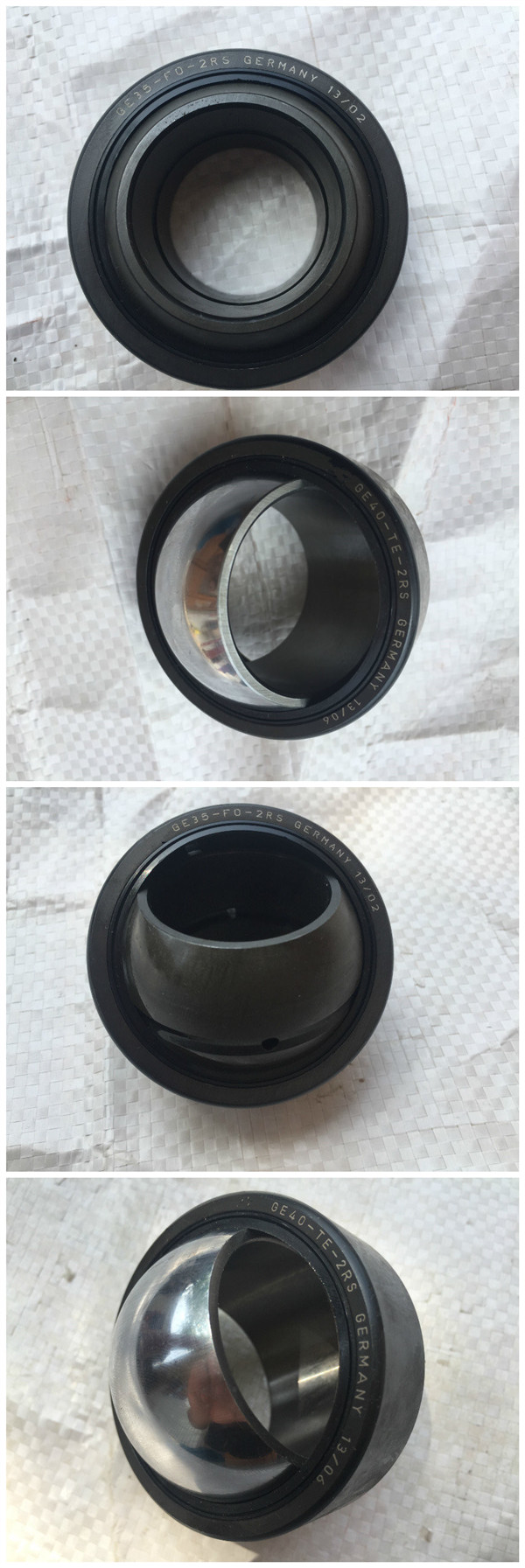

Pictures of spherical plain bearing
