SYBR 230SM125MA Split Spherical Roller Bearings

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

Split spherical roller bearings：

Costs savings through rapid bearing replacement at difficult to access bearing locations

Split spherical roller bearings are principally used where the replacement of unsplit spherical roller bearings would require costly additional work, involving the removal of gears or couplings, the dismounting of drives or the dismantling of shaft power trains. The use of split spherical roller bearings reduces the downtime of machinery and plant.

Split spherical roller bearings are essentially used on shafts supported at several points and locations that are difficult to access. Typical areas of application include conveying equipment, materials processing plant, ventilation plant, rolling mills, ships and paper machinery.

Split spherical roller bearings 230SM125MA Specfication:

Product	230SM125MA Bearing Size 125x210x53 mm Split spherical roller bearing 230SM125-MA
Precision Rating	ABEC1,ABEC3,ABEC5
Clearance	C0,C2,C3,C4,C5 is available
Sealed Cap	Rubber or Metal
Paypal	Acceptable
OEM	Accept
Vibration Level code	V1,V2.V3
Material	Gcr15
Seals Type	ZZ/ZRS.RZ/RS. Open
Thickness	53MM
Bore Size	125MM
Outside Diameter	210MM
Mass	--kg
Regular export packing	Plastic drum+White box+ carton
	industrial packaging or as your requiremen.
MOQ	1 pcs
Delivery Time	1-3 days after receiving your payment
Payment Terms	L/C,T/T,Western Union,MoneyGram,Paypal
Port of shippment by sea	Shanghai,guangzhou,qingdao
Place of Origin	Shandong, China
Samples	Available

Split spherical roller bearings Catalog：

Bearing No.	d	D	C
	mm	mm	mm
230S.508-MA	139.7	240	60
230S.607-MA	163.513	280	74
230S.700	177.8	290	75
230S.807	214.313	360	92
230S.808	215.9	360	92
230S.900	228.6	360	92
230S.908	241.3	400	104
230S.1000	254	420	106
230S.1008	266.7	420	106
230S.1100	279.4	460	118
230S.1200	304.8	480	121
230S.1300	330.2	540	134
230S.1400	355.6	560	135
230S.1500	381	600	148
230S.1600	406.4	650	157
230SM110-MA	110	180	46
230SM115-MA	115	200	52
230SM125-MA	125	210	53
230SM135-MA	135	225	56
230SM140-MA	140	240	60
230SM150-MA	150	260	67
230SM160-MA	160	280	74
230SM170-MA	170	290	75
230SM180-MA	180	310	82
230SM200-MA	200	340	90
230SM220-MA	220	360	92
230SM240-MA	240	400	104
230SM260-MA	260	420	106
230SM280-MA	280	460	118
230SM300-MA	300	480	121
230SM320-MA	320	520	133
230SM340-MA	340	540	134
230SM360-MA	360	560	135
230SM380-MA	380	600	148
230SM400-MA	400	620	150
230SM410-MA	410	650	157
230SM420-MA	420	650	157
230SM450-MA	450	700	165
230SM470-MA	470	720	167
230SM500-MA	500	780	185
230SM530-MA	530	820	195
230SM630-MA	630	980	230
231S.607	163.513	300	96
231S.615	176.213	320	104
231S.700	177.8	340	112
231S.703	182.563	340	112
231S.715	201.613	370	120
231S.907	239.713	440	144
231S.908	241.3	440	144
231S.915	252.413	460	146
231S.1000	254	460	146
231S.1007	265.113	460	146
231S.1015	277.812	500	160
231S.1100	279.4	500	160
231S.1200	304.8	540	176
231S.1207	315.913	580	190
231S.1208	317.5	580	190
231S.1300	330.2	600	192
231S.1308	342.9	600	192
231S.1400	355.6	620	194
231SM100-MA	100	180	56
231SM110-MA	110	200	62
231SM115-MA	115	210	64
231SM125-MA	125	225	68
231SM135-MA	135	250	80
231SM140-MA	140	270	86
231SM150-MA	150	280	88
231SM160-MA	160	300	96
231SM170-MA	170	320	104
231SM180-MA	180	340	112
231SM200-MA	200	370	120
231SM220-MA	220	400	128
231SM240-MA	240	440	144
231SM260-MA	260	460	146
231SM280-MA	280	500	160
231SM300-MA	300	540	176
231SM320-MA	320	580	190
231SM340-MA	340	600	192
231SM360-MA	360	620	194
231SM380-MA	380	650	200
231SM400-MA	400	700	224
231SM410-MA	410	720	226
231SM430-MA	430	760	240
239SM530-MA	530	750	140
239SM560-MA	560	800	150
239SM600-MA	600	850	165
240SM400-MA	400	620	200
241SM470-MA	470	830	325
241SM500-MA	500	870	335
241SM530-MA	530	920	355

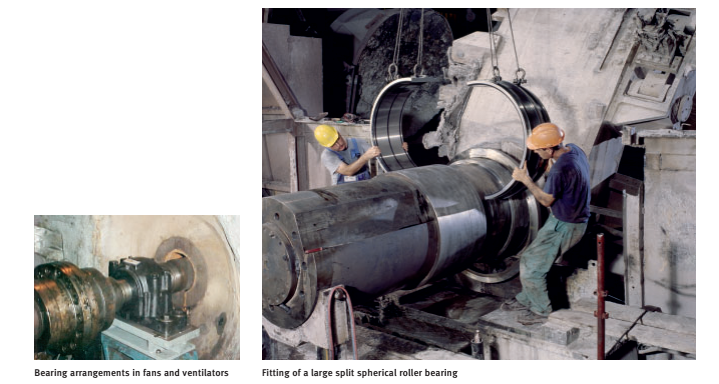

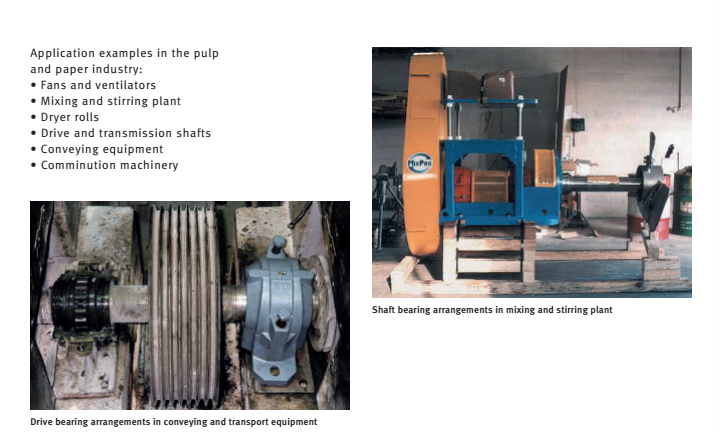

Split spherical roller bearings Application:

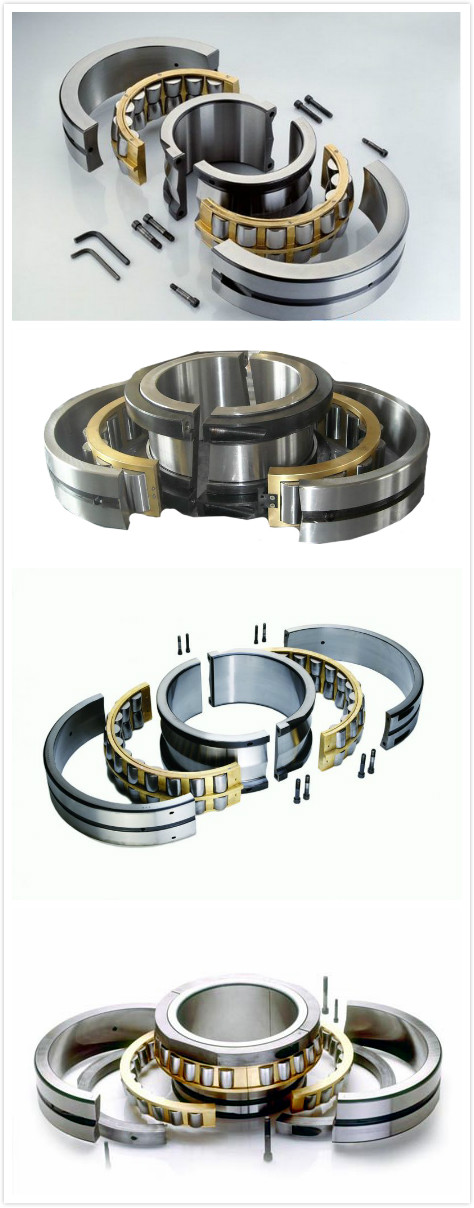

Split spherical roller bearings Pictures:
