SYBR 22310 CCW33C3 Spherical conveyor roller bearings

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

SYBR 22310 CCW33C3 Spherical conveyor roller bearings

Spherical Roller Bearings dimensional series are:

21300 Series - ISO Dimension Series 13 Spherical Roller Bearings
22200 Series - ISO Dimension Series 22 Spherical Roller Bearings
22300 Series - ISO Dimension Series 23 Spherical Roller Bearings
23000 Series - ISO Dimension Series 30 Spherical Roller Bearings
23100 Series - ISO Dimension Series 31 Spherical Roller Bearings
23200 Series - ISO Dimension Series 32 Spherical Roller Bearings
232 / Series - Extra Large ISO 32 Series Spherical Roller Bearing
23900 Series - ISO Dimension Series 39 Spherical Roller Bearings
24000 Series - ISO Dimension Series 40 Spherical Roller Bearings
24100 Series - ISO Dimension Series 41 Spherical Roller Bearings
29000 Series - ISO Dimension Series 90 Spherical Thrust Roller Bearings

d	50
D	110
B	40
rsmin	2
Cr (KN)	180.3
Cor (KN)	216.3
Cylindrical Bore	22310CC
Tapered Bore	22310CCK
Limiting Speed Grease	3800
Limiting Speed Oil	4800
da (min)	60
Da (Max)	100
ra (Max)	2
Mass (KG)	1.79

SYBR 22310 CCW33C3 Spherical conveyor roller bearings

Spherical Roller Bearings knowledge expansion:
1.Internal Structure and Retainer Material Variation

C: Symmetrical roller, Stamped Steel retainer

CA: Symmetrical roller, one-pice brass cage

CTN1: Symmetrical roller, nylon cage

E: Third generation design. improved stress distribution; offer much longer service life than normal designs

Q: Bronze cage

MB: Symmetrical roller,Two-pice brass cage

EM: Symmetrical roller, Special alloy Integral cage.

2.External form change

K: Tapered bore bearing,taper is 1:12

K30: Tapered bore bearing,taper is 1:30

N: A snap ring groove on the outer ring

W33: There are three lubrication groove and three lubrication holes in the outer ring

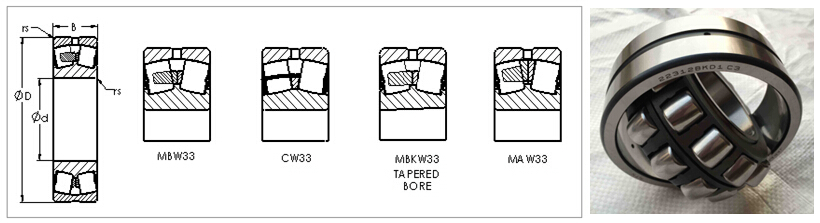

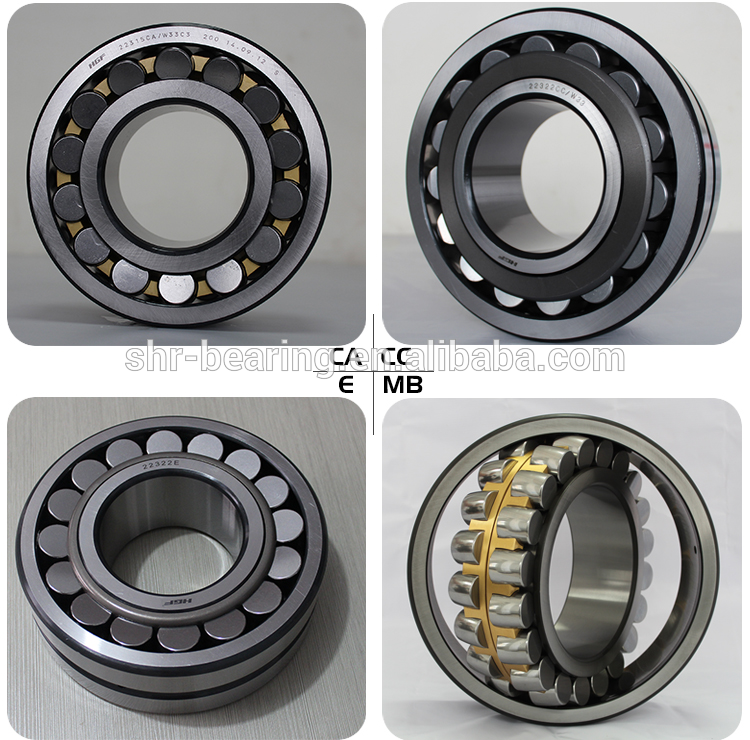

Spherical Roller Bearings Cage Types:

Spherical Roller Bearings Stock List:

Boundary Dimensions			Cylindrical Bore Designation	Tapered Bore Designation	Mass Cylindrical Bore	Load ratings		Speed ratings (rpm)
d	D	B				Cr	Cor	ng oil
mm					kg	kN	kN
25	62	17	21305 CA W33	21305 CA K W33	0.26	44.6	39.2	11640
	52	18	22205 CA W33	22205 CA K W33	0.18	45.6	41.2	16490
30	72	19	21306 CA W33	21306 CA K W33	0.38	58.2	56.8	9700
	62	20	22206 CA W33	22206 CA K W33	0.27	58.2	55.9	13580
35	80	21	21307 CA W33	21307 CA K W33	0.5	69.8	68.6	9215
	72	23	22207 CA W33	22207 CA K W33	0.43	79.5	79.4	11640
40	90	23	21308 CA W33	21308 CA K W33	0.72	97	102.9	9215
	80	23	22208 CA W33	22208 CA K W33	0.53	89.2	83.3	10670
	90	33	22308 CA W33	22308 CA K W33	1.05	140.7	132.3	7760
45	100	25	21309 CA W33	21309 CA K W33	0.87	116.4	117.6	8245
	85	23	22209 CA W33	22209 CA K W33	0.58	97	93.1	9700
	100	36	22309 CA W33	22309 CA K W33	1.37	169.8	176.4	6790
50	110	27	21310 CA W33	21310 CA K W33	1.32	145.5	156.8	7275
	90	23	22210 CA W33	22210 CA K W33	0.61	97	102.9	9215
	110	40	22310 CA W33	22310 CA K W33	1.9	203.7	210.7	6111
55	120	29	21311 CA W33	21311 CA K W33	1.18	146	157	7275
	100	25	22211 CA W33	22211 CA K W33	0.83	116	123	8245
	120	43	22311 CA W33	22311 CA K W33	2.2	252	265	5432
60	130	31	21312 CA W33	21312 CA K W33	1.77	194	225	6111
	110	28	22212 CA W33	22212 CA K W33	1.08	146	157	7275
	130	46	22312 CA W33	22312 CA K W33	2.91	286	314	5141
65	140	33	21313 CA W33	21313 CA K W33	2.4	218	255	5820
	120	31	22213 CA W33	22213 CA K W33	1.54	180	201	6790
	140	48	22313 CA W33	22313 CA K W33	3.5	313	338	4850
	100	35	24013 CA W33	24013 CA K W33		121	162	6111
70	150	35	21314 CA W33	21314 CA K W33	3.02	262	304	5432
	125	31	22214 CA W33	22214 CA K W33	1.66	194	216	6499
	150	51	22314 CA W33	22314 CA K W33	4.15	369	402	4365
75	160	37	21315 CA W33	21315 CA K W33	2.91	262	304	5432
	130	31	22215 CA W33	22215 CA K W33	1.66	199	225	6111
	160	55	22315 CA W33	22315 CA K W33	5.17	407	446	4171
	115	40	24015 CA W33	24015 CA K W33		160	216	5141
80	170	39	21316 CA W33	21316 CA K W33	4.1	301	353	5141
	140	33	22216 CA W33	22216 CA K W33	4.6	218	255	5820
	170	58	22316 CA W33	22316 CA K W33	6.02	451	505	3880
85	180	41	21317 CA W33	21317 CA K W33	5.43	301	353	5141
	150	36	22217 CA W33	22217 CA K W33	2.65	262	304	5432
	180	60	22317 CA W33	22317 CA K W33	7.13	509	578	3686
90	190	43	21318 CA W33	21318 CA K W33	6.34	349	421	4656
	160	40	22218 CA W33	22218 CA K W33	3.33	301	353	5141
	190	64	22318 CA W33	22318 CA K W33	8.32	563	647	3492
	160	52.4	23218 CA W33	23218 CA K W33	4.11	330	412	3686

SYBR 22310 CCW33C3 Spherical conveyor roller bearings Application:

Widely used in Motor, Machinery, Electric Tools, Sports Apparatus, medical equipment, chemicals, aviation, perfume bottles,
sprayers, valves, nail polish, body jewelry, mobile phone panels, toys, etc.

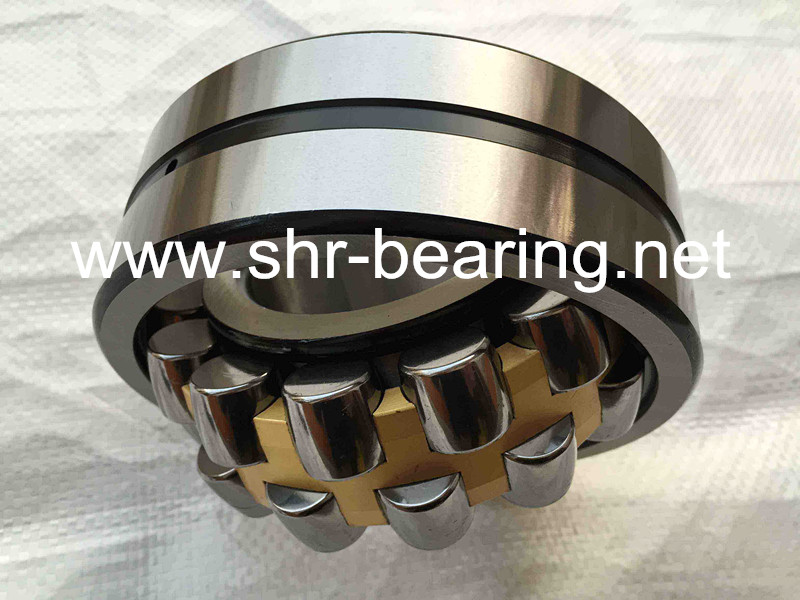

SYBR 22310 CCW33C3 Spherical conveyor roller bearings photos :
