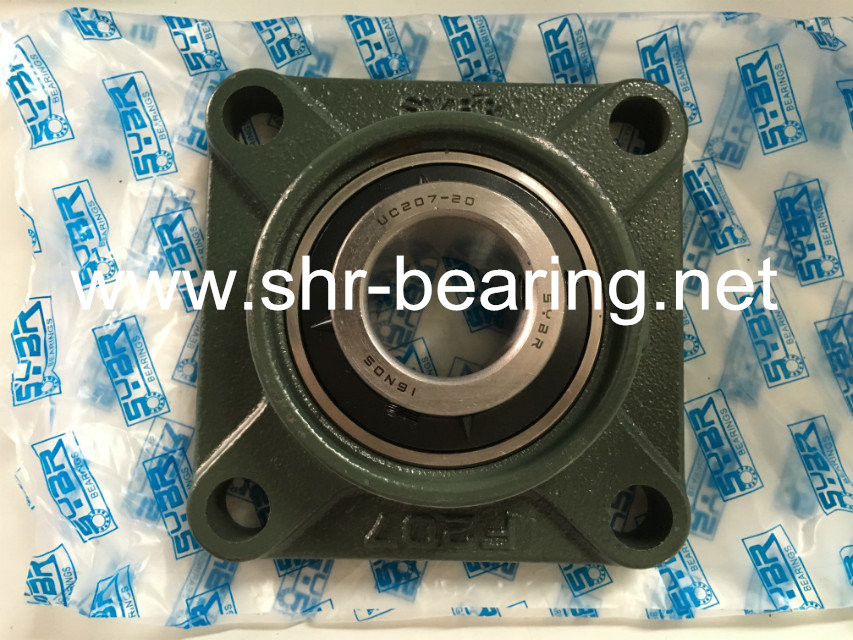

SYBR UCF207 block bearings pillow ball bearing

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

Detail information of the pillow block bearings

Pillow blocks are usually referred to the housings which have a bearing fitted into them and thus the user need not purchase the bearings separately.
Pillow blocks are usually mounted in cleaner environments and generally are meant for lesser loads of general industry.

Different types of bearing housings
aligning. This type can be used as free side bearings for long shafts because they are capable of accommodating shaft expansion or
contraction due to temperature differences. Also suitable where there is adjustment of the axial direction is required.

5)Light duty types SAFD, SBFD, SAFW, SBFW, SALF, and SBLF.

1)Pillow blocks – these include UCP, HCP, UCLP, UKP, UCPX, and UKPX.
These mounted bearings are used when support for a rotating shaft axis is required. Their design enables them to support the shaft
in operations where the mounting surface is parallel to the shaft axis.

2)Flange type– includes UCF, HCF, UKF, UCFX, UKFX, UCFU, UCFC, UKFC, UCFS, UCFL, UKFL, UCFT.
The flange type bearing housing comes in various shapes and styles such as square, round, and rhombus flange types.

3)Take-up units type - UCT, HCT, and UKT.
These bearing housings have an inner surface which is concave sphered hence the bearing used has a convex sphered outer surface.
They are designed to permit moderate initial misplacement. Widely used in conveyor chains and conveyor belts. A sliding slot at the side
of the housing facilitates the free movement of the unit.

4)Cartridge type – UCC, HCC, and UKC.
This type of bearing housing has a cylindrical outer perimeter hence the bearing outer bore is spherical. The entire unit allows free
movement in the axial direction and is self-

Application of the pillow block bearings

1.Economical housed bearing solution

2.Light and heavy industrial use Pillow Block Bearing
3.Agricultural and Automotive Pillow Block Bearing
4.Conveyor and Fan assemblies Pillow Block Bearing
5.Fabricated machine assembly Pillow Block Bearing
6.Great value quality parts dispatched the same day

Pillow block bearings Technical Parameters

Bearing	UCF Pillow block bearings
Brand Name	NSK NTN KOYO SYBR OEM ASAHI
Bore Size	1-100(mm)
Outside Diameter	2-150(mm)
width	1-50(mm)
Material	Ring Material Chrome Steel ,Carbon steel,Stainless steel
Clearance	C0,C2,C3,C4,C5
Vibration	Zv1,Zv2 and Zv3
Precision Rating	P0,P6,P5
Greese	As you requirement, such as SRL ,PS2, Alvania R12 and so on
Number of Row	Single Row
Guarantee	1 year
Application	Home appliances, low noise and high speed electric motors,
Application	automotivecomponents, pumps, machinery.
Certifications	ISO 9001:2008, SASO,CE
Package	Single box or according to buyers requirement .
Place of Origin	China (Mainland)
MOQ	1 PCS
Payment Term	T/T or L/C or West Union

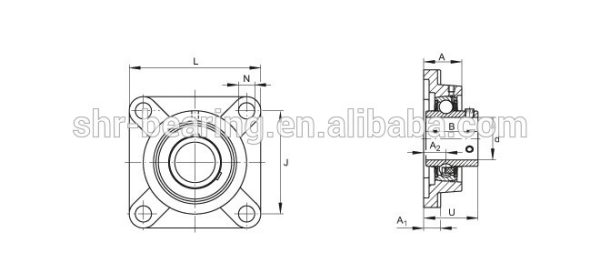

Unit No.	d	A	E	C	G	L	S	Z	B	F	bolt size
UCF201	12	86	64	15	12	25,5	12	33,3	31	12,7	M10
UCF202	15	86	64	15	12	25,5	12	33,3	31	12,7	M10
UCF203	17	86	64	15	12	25,5	12	33,3	31	12,7	M10
UCF204	20	86	64	15	12	25,5	12	33,3	31	12,7	M10
UCF205	25	95	70	16	14	27	12	35,8	34,1	14,3	M10
UCF305	25	110	80	16	13	29	16	39	38	15	M14
UCF206	30	108	83	18	14	31	12	40,2	38,1	15,9	M10
UCF306	30	125	95	18	15	32	16	44	43	17	M14
UCF207	35	117	92	19	16	34	14	44,4	42,9	17,5	M12
UCF307	35	135	100	20	16	36	19	49	48	19	M16
UCF208	40	130	102	21	16	36	16	51,2	49,2	19	M14
UCF308	40	150	112	23	17	40	19	56	52	19	M16
UCF209	45	137	105	22	18	38	16	52,2	49,2	19	M14
UCF309	45	160	125	25	18	44	19	60	57	22	M16
UCF210	50	143	111	22	18	40	16	54,6	51,6	19	M14
UCF310	50	175	132	28	19	48	23	67	61	22	M20
UCF211	55	162	130	25	20	43	19	58,4	55,6	22,2	M16
UCF311	55	185	140	30	20	52	23	71	66	25	M20
UCF212	60	175	143	29	20	48	19	68,7	65,1	25,4	M16
UCF312	60	195	150	33	22	56	23	78	71	26	M20
UCF213	65	187	149	30	22	50	19	69,7	65,1	25,4	M16
UCF313	65	208	166	33	22	58	23	78	75	30	M20
UCF214	70	193	152	31	22	54	19	75,4	74,6	30,2	M16
UCF314	70	226	178	36	25	61	25	81	78	33	M22
UCF215	75	200	159	34	22	56	19	78,5	77,8	33,3	M16
UCF315	75	236	184	39	25	66	25	89	82	32	M22
UCF216	80	208	165	34	22	58	23	83,3	82,6	33,3	M20
UCF316	80	250	196	38	27	68	31	90	86	34	M27
UCF217	85	220	175	36	24	63	23	87,6	85,7	34,1	M20
UCF317	85	260	204	44	27	74	31	100	96	40	M27
UCF218	90	235	187	40	24	68	23	96,3	96	39,7	M20
UCF318	90	280	216	44	30	76	35	100	96	40	M30
UCF319	95	290	228	59	30	94	35	121	103	41	M30

Pictures of pillow block bearings
