SYBR K182217 Split Caged Needle Roller Bearing

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

Split Caged Needle Roller Bearing Introduction:

1).This split needle roller and cage assemblies are ready-to-mount, self-contained, bearing arrangement components. They enable bearing arrangements to be produced which have high load carrying capacity and stiffness and require a minimum of radial space if the shaft and housing bore can serve as raceways and have the same hardness and surface finish as bearing rings. If the raceways are made with increased accuracy, bearing arrangements with high running accuracy can be achieved.

2).The needle Roller and cage assemblies are available in single row and double row designs. They are characterised by

simple and rugged design
accurate guidance of the rollers in the cage pockets
good running properties

3).The needle rollers are slightly relieved towards their ends. The modified line contact thus achieved between rollers and raceways means that damaging edge stresses are avoided.

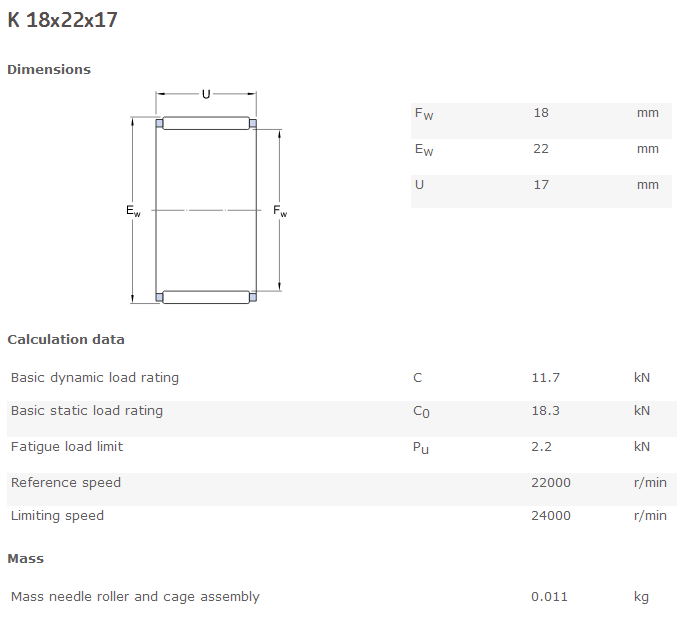

Split Caged Needle Roller Bearing K18*22*17 Specification:

Split Caged Needle Roller Bearings Catalog:

Bearing code	d	D	B	C	C0	Pu	Reference speed	Limiting speed	Mass
K 50x55x13.5	50	55	13,5	17,6	36,5	4,3	8500	9500	0,030
K 50x55x17	50	55	17	21,2	47,5	5,7	8500	9500	0,035
K 50x55x20	50	55	20	25,5	60	7,2	8500	9500	0,043
K 50x55x30	50	55	30	37,4	98	12	8500	9500	0,065
K 50x57x18	50	57	18	31,9	64	7,8	8000	9000	0,047
K 50x58x20	50	58	20	34,1	62	7,65	8000	9000	0,075
K 50x58x25	50	58	25	41,8	81,5	10,2	8000	9000	0,090
K 52x57x12	52	57	12	17,2	36,5	4,3	8000	9000	0,024
K 55x60x20	55	60	20	27	67	8,15	7500	8500	0,040
K 55x60x27	55	60	27	35,8	96,5	12	7500	8500	0,060
K 55x60x30	55	60	30	39,6	108	13,4	7500	8500	0,071
K 55x62x18	55	62	18	34,1	71	8,5	7500	8500	0,052
K 55x63x20	55	63	20	38	75	9,15	7500	8500	0,067
K 55x63x25	55	63	25	48,4	102	12,7	7500	8500	0,080
K 55x63x32	55	63	32	59,4	129	16,3	7500	8500	0,10
K 58x65x18	58	65	18	33,6	71	8,65	7000	8000	0,052
K 58x65x36 ZW	58	65	36	47,3	108	12,9	7000	8000	0,13

Different Needle Roller Bearings Types:

TYPES	SERIES
Drawn Cup Needle Roller Bearings	HK, HK…RS, HK…2RS ,BK, BK…RS, TLA, BA, SCE…
One-way Needle Roller Bearings	HF, HFL, RC, RCB, EWC…
Entity Bushed Needle Roller Bearings	NA, NK, NKI, NAV, NAO, HJ, BR, BRI…
Yoke TypeTrack Roller Bearings	RSTO, RSTO…X, STO, STO…X, RNA22…2RS, RNA22…2RSX, NA22…2RS, NA22…2RSX, NATR, NATV, NATV…PP, NATR…PP, NUTR, NUTR…X…
Combined Bearings	NARF, NARF…L, NKIA, NKIB, ZARN, ZARN…L, NKXR, NKXR…Z, NX, NX…Z, NKX, NKX…Z…
Trust Needle Roller And Cage Assembly	AXK, AXW, TC, K811, K812, K893, K894, K874, AS, WS811, GS811, LS, ZS
Radial Needle Roller And Cage Assembly	K, KS, KK, KKS, KZK, KBK, KNL…
Full Complement Needle Roller Bearings	F, FH, MF, MFH, FY, MFY, B, BH, RNAV, NAV…
Stud Type Track Roller Bearings	KR, KR…PP, KRE, KRE…PP, KRV, KRV…PP, KRVE, KRVE…PP, NUKR, NUKRE, CR, CF…
Needle Roller	DwLw, PDwLw…
Inner Ring	IR, LR…
Aligning Roller Bearings	RPNA, PNA…

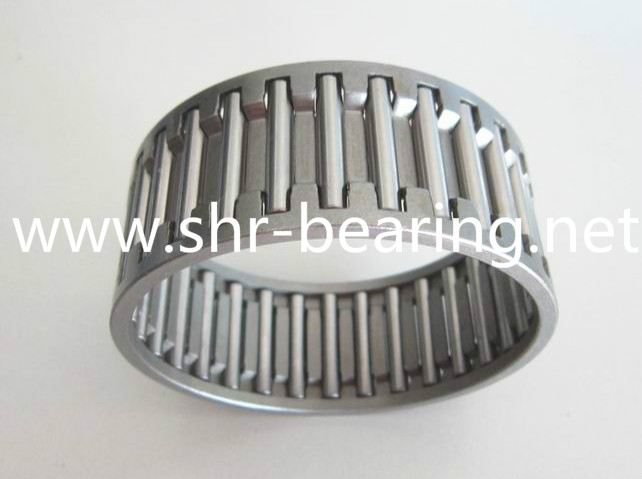

SYBR K182217 Split Caged Needle Roller Bearing

SYBR K182217 Split Caged Needle Roller Bearing

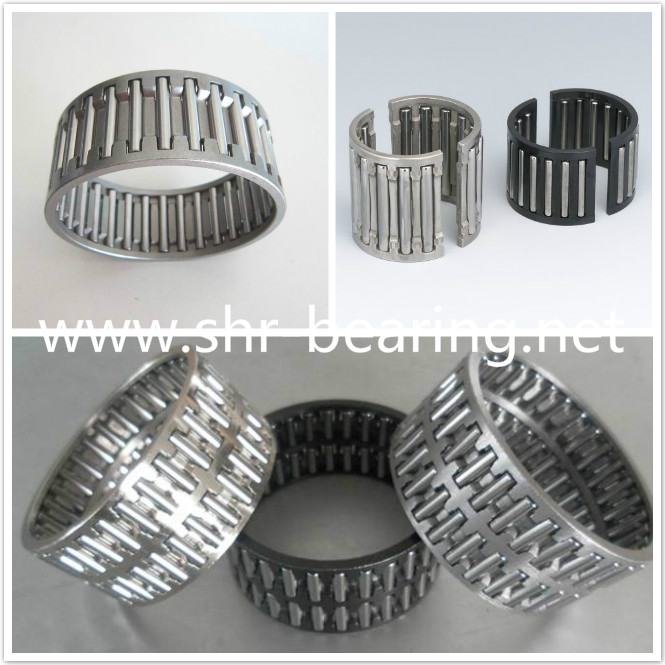

Split Caged Needle Roller Bearings Pictures:
