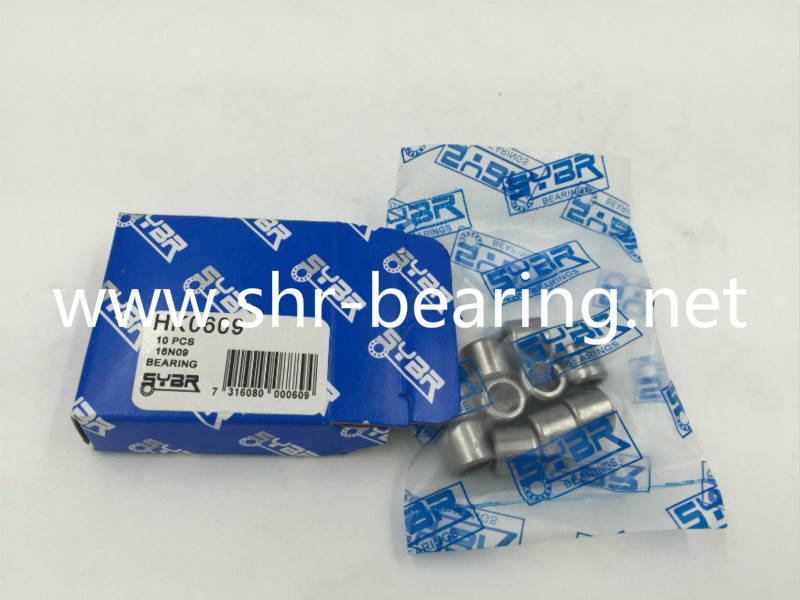

SYBR HK0609 Metric Roller Bearings Needle Roller Bearings
Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
Description
Technical
Application
Pictures
The Brief Description of Needle Roller Bearings:
Needle roller bearings are roller bearings with cylindrical rollers that are small in diameter. In spite of their low cross section, needle roller bearings have a high load carrying capacity and are therefore extremely suitable for bearing arrangements where radial space is limited.
Drawn cup needle roller bearings, as the name suggests, are needle roller bearings with a deep drawn, thin-walled outer ring with either open ends or a closed end. They are characterized by a very low sectional height and high load carrying capacity. Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required.
Generally, drawn cup needle roller bearings have a recommended maximum operating temperature of 140 °C, unless otherwise stated in the relevant sections in this chapter. The maximum operating temperature is limited by the seal and cage materials and the applied grease.
|
Name |
Needle Roller Bearing |
||
|
Model |
Drawn cup needle roller bearings, Inner Rings, Needle Thrust Bearings |
||
|
Needle Roller Bearings (machined), Needle Roller and Cage Assemblies |
|||
|
Roller Clutches, Aligning Needle Roller Bearings, |
|||
|
Bore Size: |
3mm-200mm |
Outside diameter |
6mm-300mm |
|
Clearance |
C0,C1,C2,C3,C4,C5 etc. |
||
|
Cage Type |
Brass cage or Stainless cage |
||
|
Features |
High load-carrying capacity
Suitable for high speeds
Particularly easy to install
|
||
|
Application |
Gear pumps
Sheaves
Automotive transmissions
Two-cycle engines
|
||
|
Package |
pallet, wooden case,industrial package or as customers' requirement |
||
Needle roller bearings catalogue:
| Bearing Designation and mass approx | Boundary Dimensions | |||||||
| Open end | Mass | Closed end | Mass | Fw | D | C | ||
| Current | Original Code | g | Current | Original Code | g | mm | ||
| HK0306TN | -- | 1 | BK0306TN | -- | 1 | 3 | 6.5 | 6 |
| HK0408TN | 37941/4 | 1.6 | BK0408TN | 35941/4 | 1.8 | 4 | 8 | 8 |
| HK0509 | 47941/5 | 2 | BK0509 | 45941/5 | 2.1 | 5 | 9 | 9 |
| HK0607 | 27941/6 | 1.8 | -- | -- | -- | 6 | 10 | 7 |
| HK0608 | 37941/6 | 2.1 | BK0608 | 35941/6 | 2.2 | 6 | 10 | 8 |
| HK0609 | 47941/6 | 2.2 | BK0609 | 45941/6 | 2.6 | 6 | 10 | 9 |
| HK0611 | -- | 2.3 | -- | -- | -- | 6 | 10 | 11 |
| HK06×12×08 | Jun/41 | 2.5 | -- | -- | -- | 6 | 12 | 8 |
| HK0709 | 47941/7 | 2.3 | BK0709 | 45941/7 | 2.9 | 7 | 11 | 9 |
| HK07×12×08 | -- | 2.2 | -- | -- | -- | 7 | 12 | 8 |
| HK07×12×09 | -- | 2.4 | -- | -- | -- | 7 | 12 | 9 |
| HK0808 | 37941/8 | 2.7 | BK0808 | 35941/8 | 3 | 8 | 12 | 8 |
| HK0810 | 57941/8 | 3 | BK0810 | 55941/8 | 3.4 | 8 | 12 | 10 |
| HK08×14×10 | 27942/8 | 5.35 | BK08×14×10 | 25942/8 | 5.8 | 8 | 14 | 10 |
| HK08×14×12 | 37942/8 | 6.5 | -- | -- | -- | 8 | 14 | 12 |
| HK0908 | 37941/9 | 3 | BK0908 | 35941/9 | 3.4 | 9 | 13 | 8 |
| HK0910 | 57941/9 | 4 | BK0910 | 55941/9 | 4.3 | 9 | 13 | 10 |
| HK0911 | -- | 4.1 | -- | -- | -- | 9 | 13 | 11 |
| HK0912 | 67941/9 | 4.6 | BK0912 | 65941/9 | 4.9 | 9 | 13 | 12 |
| HK09×15×10 | 27942/9 | 5.6 | -- | -- | -- | 9 | 15 | 10 |
| HK10×13×08 | -- | 3.5 | -- | -- | -- | 10 | 13 | 8 |
| HK1010 | 57941/10 | 4.1 | BK1010 | 55941/10 | 4.3 | 10 | 14 | 10 |
| HK1012 | 67941/10 | 4.8 | BK1012 | 65941/10 | 5 | 10 | 14 | 12 |
| HK1015 | -- | 6 | BK1015 | -- | 6.2 | 10 | 14 | 15 |
Different Needle Roller Bearings Types:
|
TYPES |
SERIES |
|
Drawn Cup Needle Roller Bearings |
HK, HK…RS, HK…2RS ,BK, BK…RS, TLA, BA, SCE… |
|
One-way Needle Roller Bearings |
HF, HFL, RC, RCB, EWC… |
|
Entity Bushed Needle Roller Bearings |
NA, NK, NKI, NAV, NAO, HJ, BR, BRI… |
|
Yoke TypeTrack Roller Bearings |
RSTO, RSTO…X, STO, STO…X, RNA22…2RS, RNA22…2RSX, NA22…2RS, NA22…2RSX, NATR, NATV, NATV…PP, NATR…PP, NUTR, NUTR…X… |
|
Combined Bearings |
NARF, NARF…L, NKIA, NKIB, ZARN, ZARN…L, NKXR, NKXR…Z, NX, NX…Z, NKX, NKX…Z… |
|
Trust Needle Roller And Cage Assembly |
AXK, AXW, TC, K811, K812, K893, K894, K874, AS, WS811, GS811, LS, ZS |
|
Radial Needle Roller And Cage Assembly |
K, KS, KK, KKS, KZK, KBK, KNL… |
|
Full Complement Needle Roller Bearings |
F, FH, MF, MFH, FY, MFY, B, BH, RNAV, NAV… |
|
Stud Type Track Roller Bearings |
KR, KR…PP, KRE, KRE…PP, KRV, KRV…PP, KRVE, KRVE…PP, NUKR, NUKRE, CR, CF… |
|
Needle Roller |
Dw*Lw, PDw*Lw… |
|
Inner Ring |
IR, LR… |
|
Aligning Roller Bearings |
RPNA, PNA… |
Needle roller bearings pictures:
