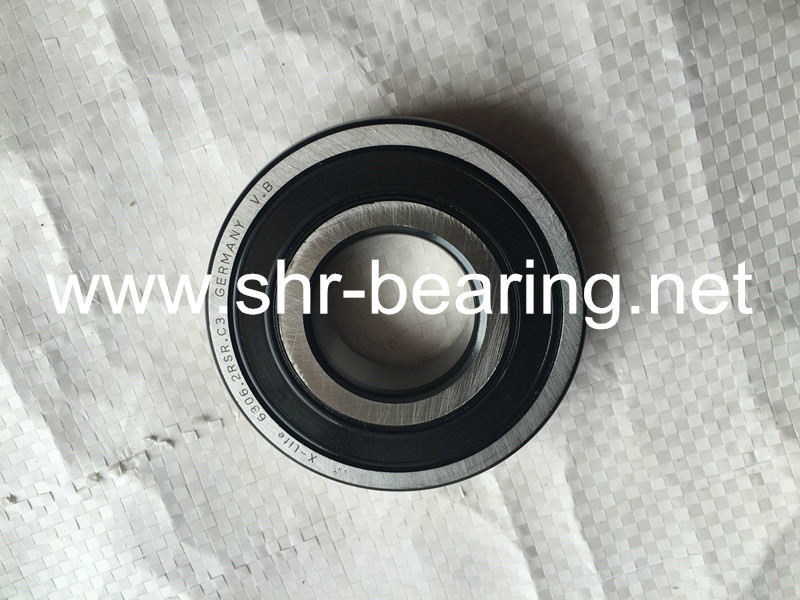

SYBR 6306-2RS C3 Deep groove ball bearings ball bearing set

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

Deep groove ball bearings can be divided into below Types according to their natures:
A:single row deep groove ball bearings ,
B:double row deep groove ball bearing
C:Full ceramic Single row deep groove ball bearings,
D:stainless steel single row deep groove ball bearings
E:inch deep groove ball bearings,
F:miniature deep groove ball bearings.
G:Thin section deep groove ball bearings.

We provide deep groove ball bearing as follows:

* 6000 Series - Miniature Bearings -limited space applications

* 6200 Series - Light Series Ball Bearings - Balanced between space and load capacity

* 6300 Series - Medium Series Ball Bearings -heavier load capacity applications

Characteristics		ZZ	2RZ	2RS1
Low friction torque		Good	Good	Fair
High speed		Good	Good	Fair
Sealed grease lubrication		Fair	Good	Excellent
Dust proof		Fair	Good	Excellent
Water proof		Poor	Fair	Good

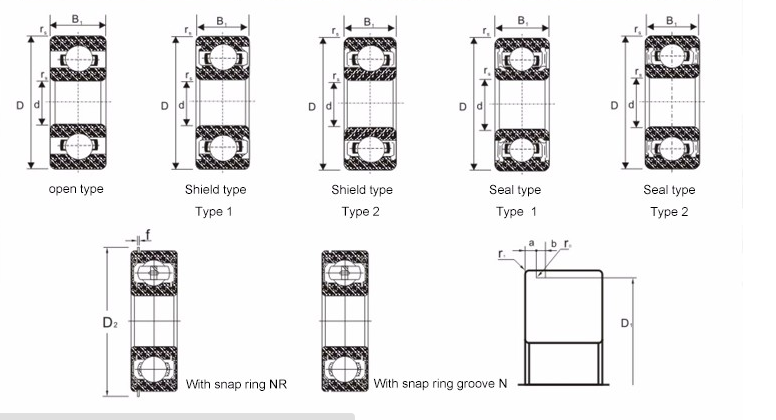

series	Diameter mm	Variant Structure
61800	10-1200	Z,2Z,RZ,2RZ
61900	10-1000	Z,2Z,RZ,2RZ,N,NR,ZN,RZN
16000	10-1000
6000	10-1000	Z,2Z,RZ,2RZ,RS1,2RS1,N,NR,ZN,RZN
6200	10-1400	Z,2Z,RZ,2RZ,RS1,2RS1,N,NR,ZN,RZN
6300	10-1200	Z,2Z,RZ,2RZ,RS1,2RS1,N,NR,ZN,RZN
6400	10-1200	N.NR
Miniature series	1-10	2Z RS 2RS F6000

Model number	d	D	B	C	C0	Pu	reference speed	limiting speed	mass
6310-2Z	50	110	27	65	38	1,6	13000	6700	1,05
6311-2Z	55	120	29	74,1	45	1,9	12000	6300	1,35
6312-2Z	60	130	31	85,2	52	2,2	11000	5600	1,70
6313-2Z	65	140	33	97,5	60	2,5	10000	5300	2,10
6314-2Z	70	150	35	111	68	2,75	9500	5000	2,50
6310-2RS1	50	110	27	65	38	1,6	-	4300	1,05
6315-2Z	75	160	37	119	76,5	3	9000	4500	3,00
6310-RS1	50	110	27	65	38	1,6	-	4300	1,05
6310-Z	50	110	27	65	38	1,6	13000	8500	1,05
6311-2RS1	55	120	29	74,1	45	1,9	-	3800	1,35
6316-2Z	80	170	39	130	86,5	3,25	8500	4300	3,60
6311-RS1	55	120	29	74,1	45	1,9	-	3800	1,35
6311-Z	55	120	29	74,1	45	1,9	12000	8000	1,35
6312-2RS1	60	130	31	85,2	52	2,2	-	3400	1,70
6317-2Z	85	180	41	140	96,5	3,55	8000	4000	4,25
6312-RS1	60	130	31	85,2	52	2,2	-	3400	1,70
6312-Z	60	130	31	85,2	52	2,2	11000	7000	1,70
6313-2RS1	65	140	33	97,5	60	2,5	-	3200	2,10
6318-2Z	90	190	43	151	108	3,8	7500	3800	4,90
6313-RS1	65	140	33	97,5	60	2,5	-	3200	2,10
6313-Z	65	140	33	97,5	60	2,5	10000	6700	2,10
6314-2RS1	70	150	35	111	68	2,75	-	3000	2,50
6319-2Z	95	200	45	159	118	4,15	7000	3600	5,65
6314-RS1	70	150	35	111	68	2,75	-	3000	2,50
6314-Z	70	150	35	111	68	2,75	9500	6300	2,50
6315-2RS1	75	160	37	119	76,5	3	-	2800	3,00
6315-RS1	75	160	37	119	76,5	3	-	2800	3,00
6315-Z	75	160	37	119	76,5	3	9000	5600	3,00
6316-2RS1	80	170	39	130	86,5	3,25	-	2600	3,60
6316-RS1	80	170	39	130	86,5	3,25	-	2600	3,60
6316-Z	80	170	39	130	86,5	3,25	8500	5300	3,60
6317-2RS1	85	180	41	140	96,5	3,55	-	2400	4,25
6317-RS1	85	180	41	140	96,5	3,55	-	2400	4,25
6317-Z	85	180	41	140	96,5	3,55	8000	5000	4,25
6318-2RS1	90	190	43	151	108	3,8	-	2400	4,90
6318-RS1	90	190	43	151	108	3,8	-	2400	4,90
6318-Z	90	190	43	151	108	3,8	7500	4800	4,90
6319-2RS1	95	200	45	159	118	4,15	-	2200	5,65
6319-RS1	95	200	45	159	118	4,15	-	2200	5,65
6319-Z	95	200	45	159	118	4,15	7000	4500	5,65

1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.

2.Heavyduty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.

3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc

4.The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc

5.Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.

6.Car: truck, road, bus, car, modified car, motorcycle ,etc.

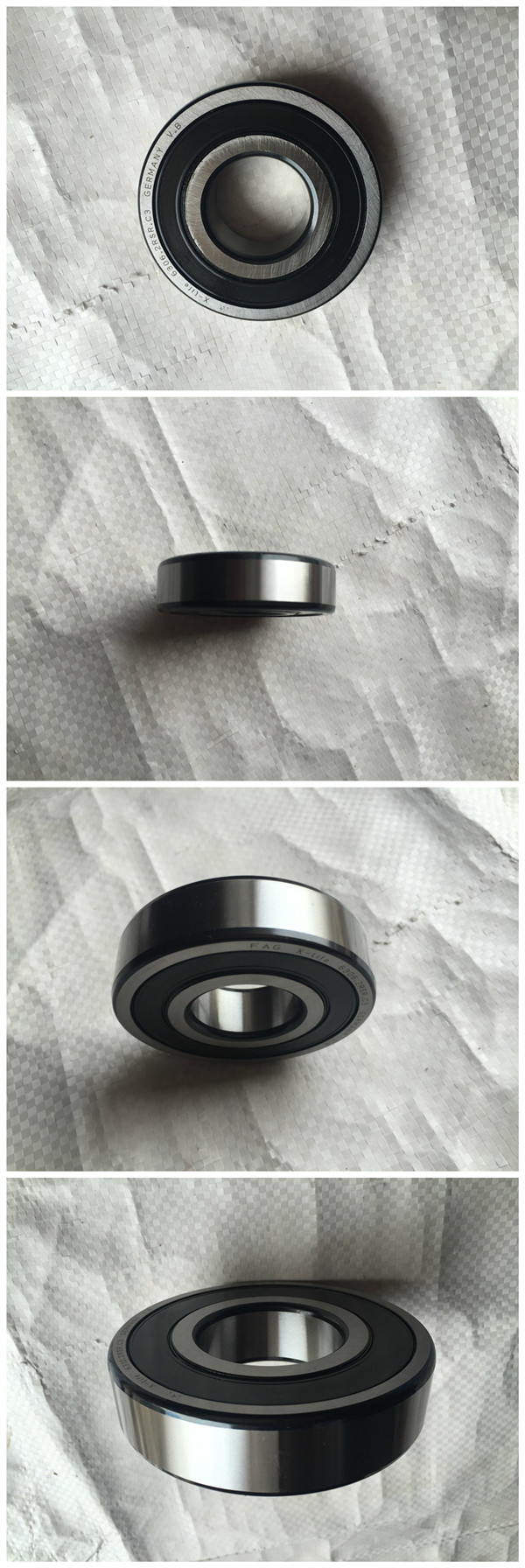

Pictures of deep groove ball bearings

Package

Delivery

Our advantage

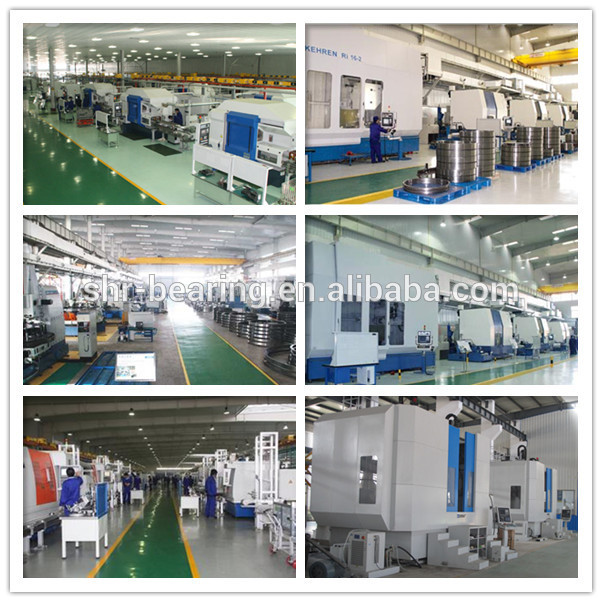

Our factory
