SYBR 6210 2RS rubber general purpose motor axial ball bearing wanted-Choose Ball Bearings Manufacturer

SYBR 6210 2RS rubber general purpose motor axial ball bearing

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

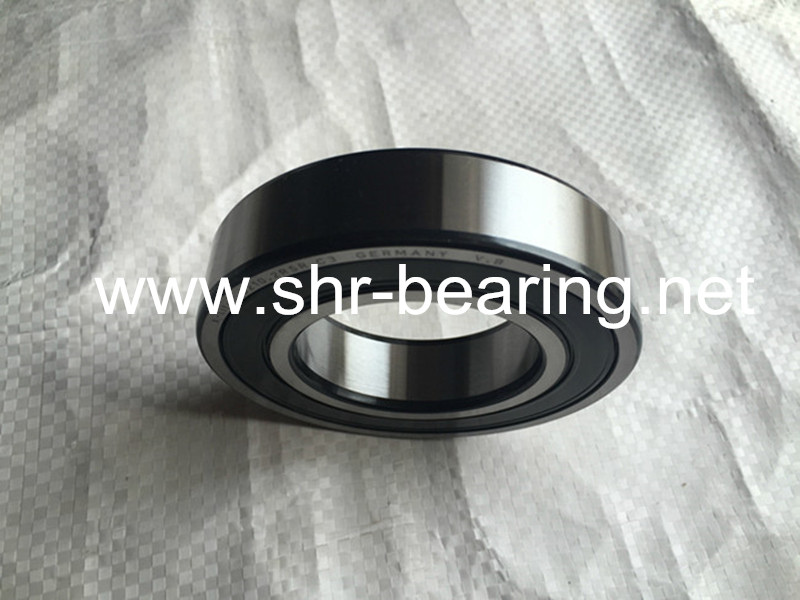

SYBR 6210 2RS rubber general purpose motor axial ball bearing

Sealed ball bearing are machined components that include an outer ring, inner ring, balls, retainers, shields and snap rings. miniature ball bearings are available in inch and metric sizes, open or shielded and flanged or unflanged. For extreme noise sensitive applications, superior hardness and corrosion resistance our ball bearings are manufactured with DD400™ stainless steel material. Single-row deep groove NSK ball bearings are the most common type of rolling bearings. Their use is very widespread.
In addition to open type bearings, these bearings often have steel shields or rubber seals installed on one or both sides and are prelubricated with grease. Also, snap rings are sometimes used on the periphery. As to cages, pressed steel ones are the most common.

Features:

Cages - The standard cage is a two-piece steel ribbon type. Most sizes are available with a two-piece riveted phenolic, aluminium-reinforced type. Some sizes are available with a one-piece filled nylon snap-in type. Other options may be available.
Closures - Most bearings are available in shielded and sealed versions.
Lubricant - Lubrication can be specified by the customer or recommended by Barden, based on the torque, speed and temperature conditions of the application.
Loads - Deep groove ball bearings can accept radial loads, thrust loads in either diretion, or combinations of loads.
Duplexing - They can be supplied in matched pairs for duplex DB, DF or DT mounting

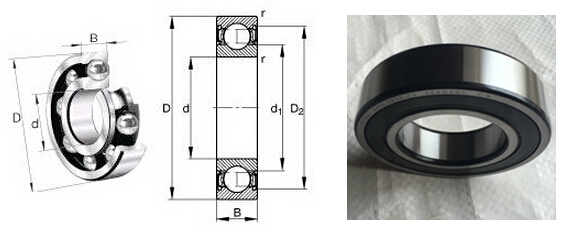

SYBR 6210 2RS rubber general purpose motor axial ball bearing size table :

d	50
D	90
B	20
r (mm)	1.1
Cr (KN)	35.1
Cor (KN)	23.3
Limiting Speed (Z,ZZ,RU,2RU)	7100
Limiting Speed (RD,2RD)	6400
Limiting Speed (RS,2RS)	4600
Limiting Speed Oil	8500
Bearing Code	6210 ZZ
da (min)	56.5
da (Max)	59
Da (Max)	83.5
ra (Max)	1
Mass (KG)	0.463

SYBR 6210 2RS rubber general purpose motor axial ball bearing models series :

Single row deep groove ball bearings come in three numerical series representing the size and load capacity of each. They are:

6000 Series - Extra Light Ball Bearings – Ideal for limited space applications

6200 Series - Light Series Ball Bearings – Balanced between space and load capacity

6300 Series - Medium Series Ball Bearings – Ideal for heavier load capacity applications

d	D	B	Cr	Cor	Model	Weight/KG
12	32	10	6.8	3.05	6201 ZZ	0.037
15	35	11	7.65	3.75	6202 ZZ	0.045
17	40	12	9.55	4.8	6203 ZZ	0.065
20	47	14	12.8	6.65	6204 ZZ	0.106
25	52	15	14	7.85	6205 ZZ	0.128
30	62	16	19.5	11.3	6206 ZZ	0.199
35	72	17	25.7	15.4	6207 ZZ	0.288
40	80	18	29.1	17.8	6208 ZZ	0.366
45	85	19	32.7	20.3	6209 ZZ	0.407
50	90	20	35.1	23.3	6210 ZZ	0.463
55	100	21	43.4	29.4	6211 ZZ	0.607
60	110	22	52.4	36.2	6212 ZZ	0.783
65	120	23	57.2	40.1	6213 ZZ	0.99
70	125	24	62.2	44.1	6214 ZZ	1.07
75	130	25	67.4	48.3	6215 ZZ	1.18
80	140	26	72.7	53	6216 ZZ	1.4
85	150	28	84	61.9	6217 ZZ	1.79
90	160	30	96.1	71.5	6218 ZZ	2.15

Single row deep groove ball bearings come in three numerical series representing the size and load capacity of each. They are:

6000 Series - Extra Light Ball Bearings – Ideal for limited space applications

6200 Series - Light Series Ball Bearings – Balanced between space and load capacity

6300 Series - Medium Series Ball Bearings – Ideal for heavier load capacity applications

SYBR 6210 2RS rubber general purpose motor axial ball bearing application & packing

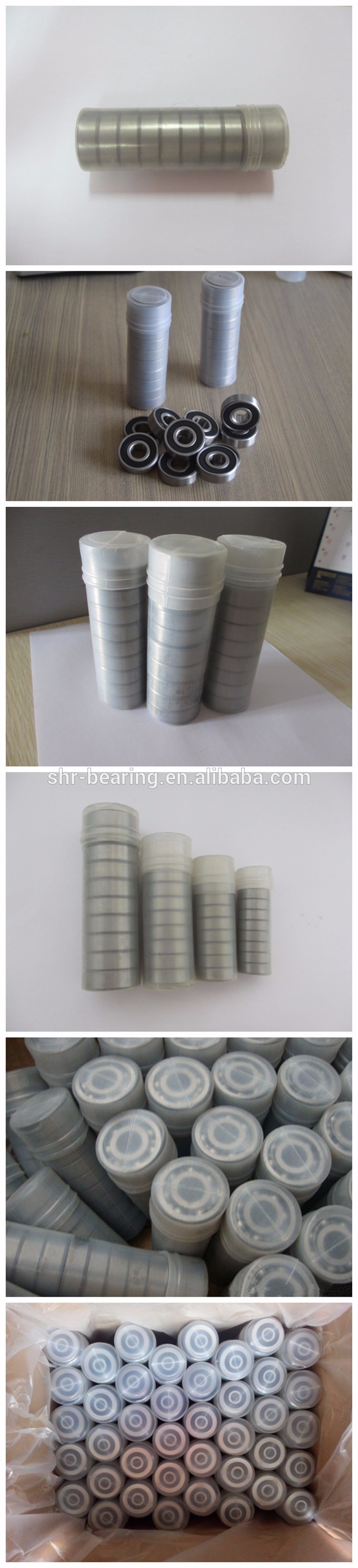

Original Package:

1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);

2):Small sizes:Plastic Tube + Carton

3):Big sizes:Wooden Case

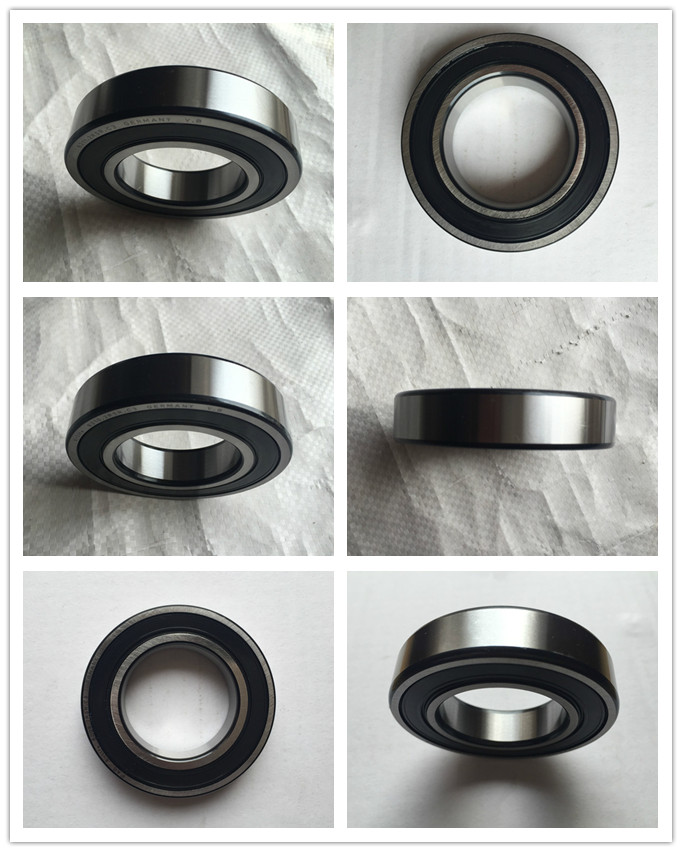

SYBR 6210 2RS rubber general purpose motor axial ball bearing
